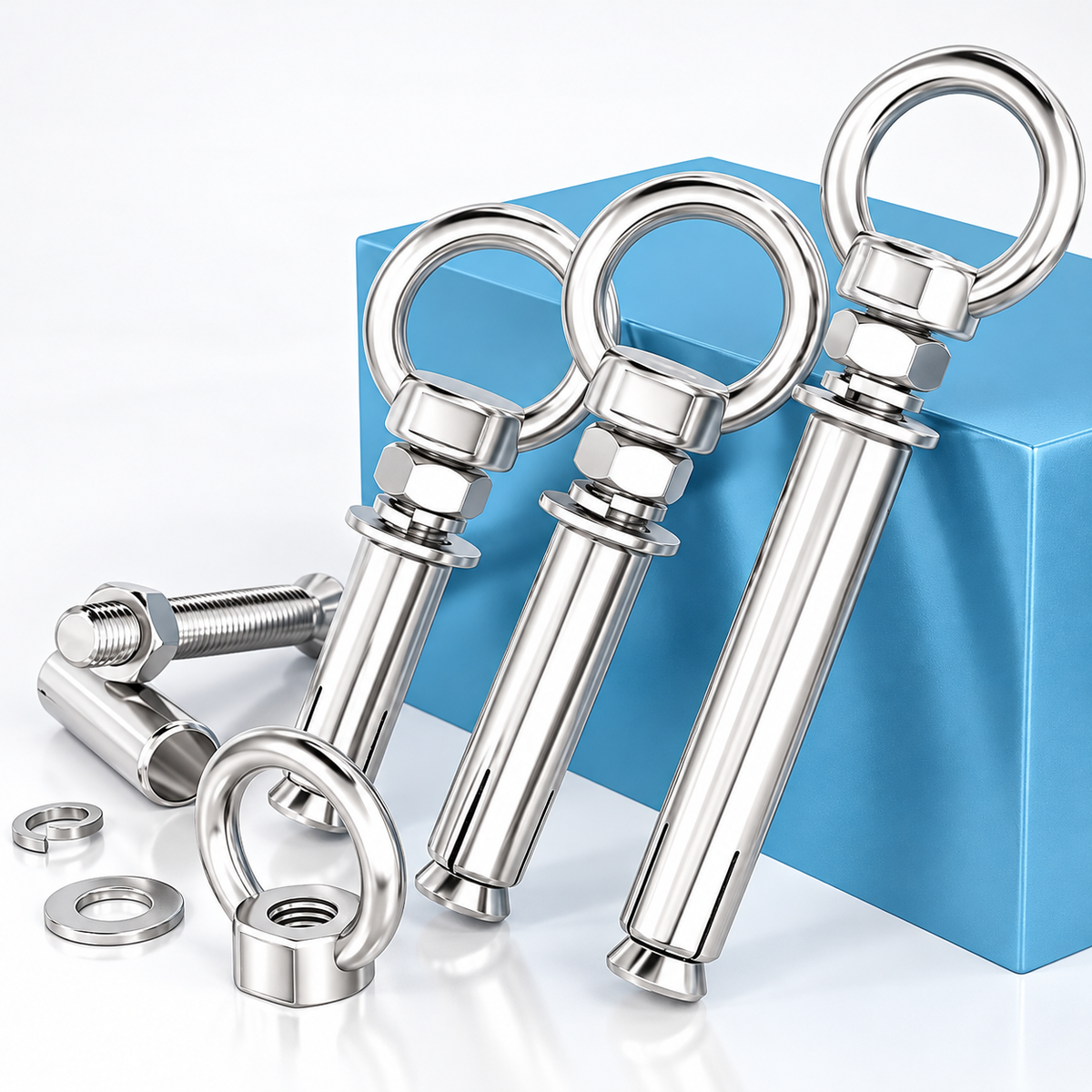

Stainless Steel Expansion Eye Bolts

🔩 304 Stainless Steel Expansion Eye Bolts — Create a Secure Anchoring Point for Your Projects

Need a practical way to add a fixed attachment point to concrete or suitable solid masonry? These 304 Stainless Steel Expansion Eye Bolts combine a closed eye ring with an expansion sleeve anchor, providing a convenient connection point for compatible hooks, cables, ropes, and other fastening accessories. Available in 6×50 mm and 8×50 mm sizes, they're useful for home improvement, garage organization, and general hardware installation projects.

🛠️ Expansion Sleeve Design for Solid-Surface Anchoring

The slotted expansion sleeve is designed to expand inside a properly prepared hole as the anchor is tightened, helping secure the fastener within compatible solid base materials. The integrated eye ring provides an accessible connection point once the anchor has been properly installed. It's a straightforward anchoring solution for projects that require a fixed attachment location.

🔗 Closed Eye Ring for Convenient Connections

Unlike a standard straight bolt, the closed circular eye gives you a designated place to connect suitable fastening accessories. Use it for compatible cable connections, rope attachment points, or general hardware setups where a fixed ring is needed. Always select the anchor and connection hardware according to the actual installation and load requirements.

✨ 304 Stainless Steel Construction

Made from 304 stainless steel, these expansion eye bolts offer the corrosion-resistance characteristics of stainless steel for appropriate installation environments. The metal eye ring, threaded fastener, nut, washer, and expansion sleeve work together as a compact anchoring assembly for everyday fastening projects.

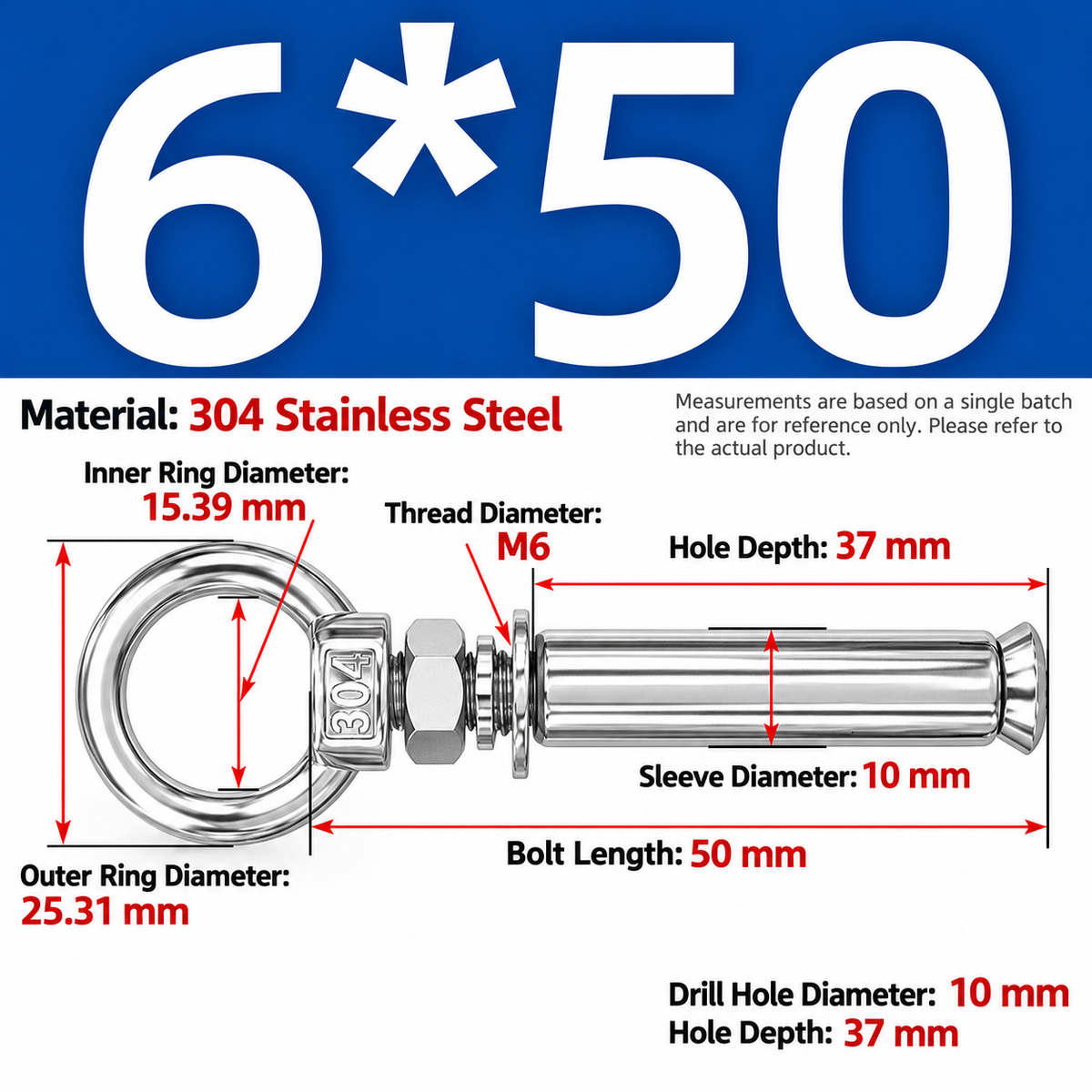

📏 6×50 mm Option — Compact Anchoring Size

The 6×50 mm version features an M6 thread, a 10 mm expansion sleeve diameter, and a 50 mm nominal bolt length. The illustrated ring measurements are approximately 15.39 mm inner diameter and 25.31 mm outer diameter. The product diagram specifies a 10 mm drill hole diameter and a 37 mm hole depth for reference.

📐 8×50 mm Option — Larger Eye Ring & Sleeve

The 8×50 mm version features an M8 thread, a 12 mm expansion sleeve diameter, and a 50 mm nominal bolt length. The illustrated ring measurements are approximately 19.47 mm inner diameter and 31.61 mm outer diameter. The product diagram specifies a 12 mm drill hole diameter and a 37 mm hole depth for reference.

🔧 Choose the Right Size for Your Installation

Check the hole dimensions, base material, installation space, and intended connection before selecting a size. Proper installation and a suitable substrate are essential for effective anchoring. The listed dimensions are reference measurements and may vary slightly between production batches.

🏡 A Practical Hardware Addition for DIY Projects

Whether you're adding an attachment point in the garage, working on a home improvement project, or installing compatible fastening hardware, these stainless steel expansion eye bolts offer a convenient combination of a closed connecting ring and mechanical sleeve anchor.
